Impact Windows Win offers Fixed Picture Windows that provide hurricane protection, energy efficiency, and sleek, modern designs to enhance your home or business.

FIXED PICTURE WINDOWS

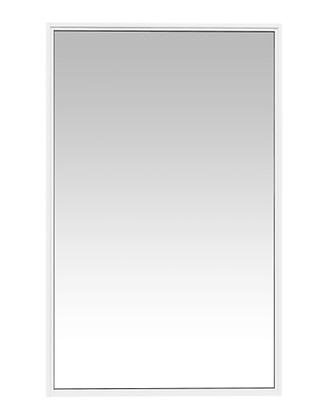

Impact Resistant Fixed Picture Window

Meets HVHZ. LMI Rated
DP= +/-65 PSF
Sizes: 48” x 84” / 36” x 108” / 24” x 168”
Slim structure to maximize glass view and day light opening
Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit
Shapes and Figures available, colonials for design freedom
Meets ANSI Z97.1 (Human fall/impact protection)
Machine glazed with silicone GE 2000/DS795
Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer
Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light
transmittance
Silicone glazing gasket and stainless steel screws
Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to AAMA 2605 (10 years warranty)
Aluminum 6063T6 structure

Florida Product Approval

Impact Resistant Fixed Picture Window

Max. Dimensions: 48” x 84”
Meets Florida Building Code for High Velocity Hurricane Zone.
Large missile rated
Matches with MG-200 and MG-300 single hung and horizontal
roller series
Figures and arches are available
Glazing applied with high strength silicone for elevated resistance
to impact and cyclic loads
2-7/8” deep frame. Glazing capabilities: Heat strengthened laminated 7/16” and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available
Design Pressures up to +/- 100 PSF
Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

Florida Product Approval

Impact Resistant Fixed Picture Window

Versatile series that can be manufactured as fixed glass window, louver or a combination of both
Meets Florida Building Code for High Velocity Hurricane Zone.
Large and Small missile rated
Includes intermediate horizontals (verticals depending on orientation)
Mitered cuts and assembly via fixed corner and alignment keys.
For figures and arches, corner keys and alignment keys are adjustable. Drained pockets with Hi-Flo® valves and screw covers
Glazing capabilities 7/16”, 9/16” Laminated and 1” insulated laminated
Max Dimensions as Fixed Window: 48” x 180” Design Pressures:
+85/-120 PSF
Max. Dimensions as Louvers 60” x 168” Design Pressures: +/- 80 PSF
Louvers compatible with MG 3000 door and impact rated
Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)
