Discover Single Hung Hurricane Impact Windows at Impact Windows Win. Durable, stylish, and energy-efficient solutions designed to protect your home or business.

SINGLE HUNG WINDOWS

Impact Resistant Single Hung Window

Max. Dimensions: 53-1/8” x 96”
Meets Florida Building Code for High Velocity Hurricane Zone. Large and Small missile rated
Sturdy Construction allows for very high wind loads up to 140 PSF
Glazing applied with high strength silicone for elevated resistance to impact and cyclic loads
2-7/8” deep frame. Glazing Capabilities: Heat strengthened laminated (5/16” & 7/16”) and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available
Hybrid “Ultralift” ® balances for ease of operation come standard
Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

Florida Product Approval

Impact Resistant Single Hung Window Wall System

Max Dimensions of each module 48” x 120”
Modular Design and allows for multiple units connected side by side
Meets Florida Building Code for High Velocity Hurricane Zone. Large and small missile rated
Sturdy Construction allows for very high wind loads up to 120 PSF
6” deep system. Glazing Capabilities: Heat Strengthened Laminated (7/16” & 9/16”) and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available.
Suitable for high rise applications. Accommodates structure movement, expansion and contractions
Hybrid “Ultralift” ® balances for ease of operation come standard
Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

Florida Product Approval

Impact Resistant Single Hung Window

Meets HVHZ. LMI Rated
DP= +65/-80 PSF
Sizes up to 53” x 76”
Slim structure to maximize glass view and day light opening
Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit
Machine glazed with silicone GE 2000/DS795
Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer
Silicone glazing gasket and stainless steel screws
Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light transmittance
Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to AAMA 2605 (10 years warranty)
Aluminum 6063T6 structure
Colonials for design freedom

Florida Product Approval

Impact Resistant Single Hung Window

Impact Resistant Single Hung Window

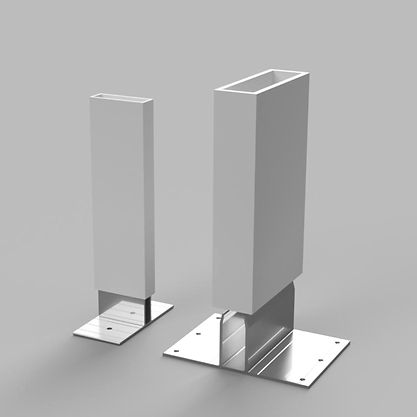

Unclipped Mullions

Has been designed with the installer in mind. The objective is to reduce
the installation work and time by eliminating the anchoring clips
Take advantage of the extrusions of the systems that are connecting,
increasing the inertia of the resulting composition mullion
Validated for vertical and horizontal applications
Available in two sizes: 1″ x 4” and 1″ x 3”
Spans up to 120”. DP up to 120 PFS

Florida Product Approval

Clipped Mullions

Include traditional 1”x 3”, 1” x 4”, 2” x 4”, 2” x 6” standard and heavy
Included a 2” x 8” x 1/4” that can be used as a steel column substitute
in many cases

Florida Product Approval
