Impact Windows Win offers Fixed Picture Windows that provide hurricane protection, energy efficiency, and sleek, modern designs to enhance your home or business.
FIXED PICTURE WINDOWS

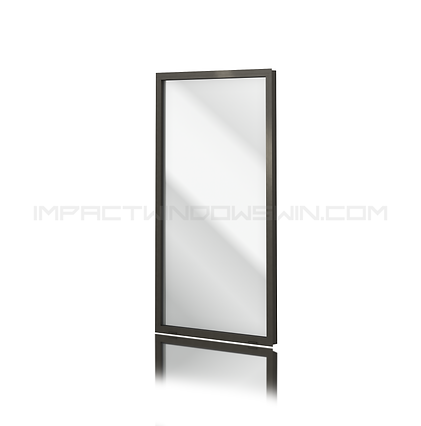

Impact Resistant Fixed Picture Window
-
Meets HVHZ. LMI Rated
-
DP= +/-65 PSF
-
Sizes: 48” x 84” / 36” x 108” / 24” x 168”
-
Slim structure to maximize glass view and day light opening
-
Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit
-
Shapes and Figures available, colonials for design freedom
-
Meets ANSI Z97.1 (Human fall/impact protection)
-
Machine glazed with silicone GE 2000/DS795
-
Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer
-
Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light
transmittance -
Silicone glazing gasket and stainless steel screws
-
Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to AAMA 2605 (10 years warranty)
-
Aluminum 6063T6 structure
Florida Product Approval
Impact Resistant Fixed Picture Window
-
Max. Dimensions: 48” x 84”
-
Meets Florida Building Code for High Velocity Hurricane Zone.
Large missile rated -
Matches with MG-200 and MG-300 single hung and horizontal
roller series -
Figures and arches are available
-
Glazing applied with high strength silicone for elevated resistance
to impact and cyclic loads -
2-7/8” deep frame. Glazing capabilities: Heat strengthened laminated 7/16” and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available
-
Design Pressures up to +/- 100 PSF
-
Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)
Florida Product Approval
Impact Resistant Fixed Picture Window
-
Versatile series that can be manufactured as fixed glass window, louver or a combination of both
-
Meets Florida Building Code for High Velocity Hurricane Zone.
Large and Small missile rated -
Includes intermediate horizontals (verticals depending on orientation)
-
Mitered cuts and assembly via fixed corner and alignment keys.
For figures and arches, corner keys and alignment keys are adjustable. Drained pockets with Hi-Flo® valves and screw covers -
Glazing capabilities 7/16”, 9/16” Laminated and 1” insulated laminated
-
Max Dimensions as Fixed Window: 48” x 180” Design Pressures:
+85/-120 PSF -
Max. Dimensions as Louvers 60” x 168” Design Pressures: +/- 80 PSF
-
Louvers compatible with MG 3000 door and impact rated
-
Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)
Florida Product Approval
FL #40676.1 LMI – FL #40676.2 SMI
Impact Resistant Fixed Picture Window
-
Heavy-gauge aluminum T6 alloy
-
Stainless steel assembly screws
-
Double weather-stripping
-
Extruded snap-on glazing beads
-
Flange Frame
-
2 3/4″ Frame Depth
-
Maximum Width: 37″
-
Maximum Height: 76″
-
Maximum Size:
-
37″ x 76″ (LMI)
-
30″ x 70″ (SMI)
-
Design Pressure: +70/-75 psf
-
5/16″ HS/HS
-
Stainless steel operator
-
Multipoint lock
-
Nesting handle
-
NFRC Certified
-
Florida Product Approval: Large Missile and Small Missile
-
7/8″ TMP/HS and 7/16″ HS/HS
-
Energy efficient LoE coatings
-
Equal leg adapter
-
Glass with argon
-
Extruded double-applied 1″ colonial muntins
-
Available Mutins:
-
1″ Flat-Flat
-
1″ Ogee-Flat
-
1″ Ogee-Ogee
-
Available in Colonial,
-
Brittany 6, Brittany 9
Impact Resistant Fixed Picture Window
-
Heavy-gauge aluminum T6 alloy
-
Stainless steel assembly screws
-
2 3/4″ Frame Depth
-
Maximum Width: 72″
-
Maximum Height: 120″
-
Maximum Size:
-
36″ x 120″ (LMI)
-
24″ x 120″ (SMI)
-
(Large Missile) Design Pressure: +80/-90 psf
-
7/16″ HS/HS
-
Concealed fasteners
-
Clear, Gray, Bronze, Green, Azuria, Obscure (White Interlayer)
-
Flange frames
-
Florida Product Approval: Large Missile and Small Missile
-
Equal leg adapter
-
Energy efficient LoE coatings
-
Extruded double-applied 1″ colonial muntins
-
Available Muntins:
-
1″ Flat-Flat
-
1″ Ogee-Flat
-
1″ Ogee-Ogee
-
Available in Colonial, Brittany 6, Brittany 9
-
Architectural shapes
offers Fixed Picture Impact Windows designed for maximum protection, efficiency, and modern style in South Florida homes and commercial properties.
What Are Fixed Picture Impact Windows
Fixed picture windows are non-operable impact windows. They do not open, which allows them to achieve higher strength ratings and a clean, uninterrupted glass appearance. Because there are no moving parts, they are one of the strongest and most reliable window options for hurricane protection.
Hurricane Protection
Our fixed picture windows are built with Miami-Dade approved laminated impact glass designed to withstand high winds and flying debris. These systems meet High Velocity Hurricane Zone (HVHZ) requirements and help protect your property during severe storms while maintaining structural integrity.
Energy Efficiency
Fixed picture impact windows help improve indoor comfort and reduce energy costs. Available options include Low-E glass and insulated glass configurations that reduce heat transfer, block UV rays, and help keep interiors cooler in South Florida’s climate.
